Retinal-Resolution Varifocal VR
SIGGRAPH 2023 Emerging Technologies
Yang Zhao
Reality Labs Research, Meta
Dave Lindberg
Reality Labs Research, Meta
Bruce Cleary
Reality Labs Research, Meta
Olivier Mercier
Reality Labs Research, Meta
Ryan Mcclelland
Reality Labs Research, Meta
Eric Penner
Reality Labs Research, Meta
Yu-Jen Lin
Reality Labs Research, Meta
Julia Majors
Reality Labs Research, Meta
Douglas Lanman
Reality Labs Research, Meta
Abstract

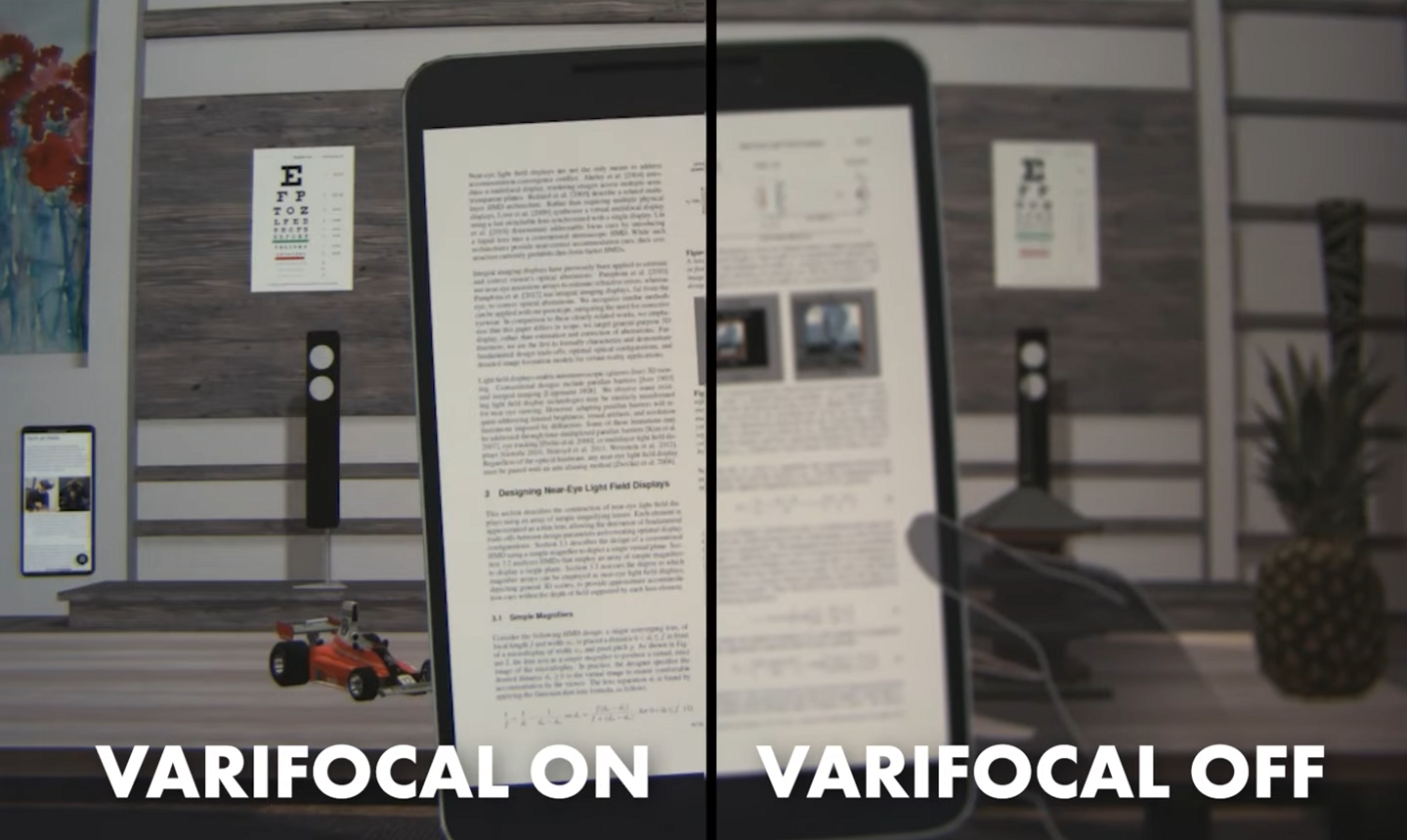

We develop a virtual reality (VR) head-mounted display (HMD) that achieves near retinal resolution with an angular pixel density up to 56 pixels per degree (PPD), supporting a wide range of eye accommodation from 0 to 4 diopter (i.e. infinity to 25 cm), and matching the dynamics of eye accommodation with at least 10 diopter/s peak velocity and 100 diopter/s2 acceleration. This system includes a high-resolution optical design, a mechanically actuated, eye-tracked varifocal display that follows the user’s vergence point, and a closed-loop display distortion rendering pipeline that ensures VR content remains correct in perspective despite the varying display magnification. To our knowledge, this work is the first VR HMD prototype that approaches retinal resolution and fully supports human eye accommodation in range and dynamics. We present this installation to exhibit the visual benefits of varifocal displays, particularly for high-resolution, near-field interaction tasks, such as reading text and working with 3D models in VR.
Media
Press
Bibtex
@incollection{zhao2023retinal, title={Retinal-resolution varifocal vr}, author={Zhao, Yang and Lindberg, Dave and Cleary, Bruce and Mercier, Olivier and Mcclelland, Ryan and Penner, Eric and Lin, Yu-Jen and Majors, Julia and Lanman, Douglas}, booktitle={ACM SIGGRAPH 2023 Emerging Technologies}, pages={1--3}, year={2023} }
